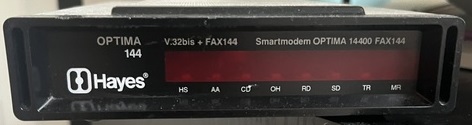

Hayes Optima 144 Modem

The Hayes Optima 144 (also known as Optima 14400) is a high-performance V.32bis modem from the early 1990s, capable of 14,400 bps data transmission. Released by Hayes Microcomputer Products in 1992–1993, it was one of the fastest consumer modems of its era, supporting advanced error correction, data compression, and fax capabilities. In the MicroBasement, our unit powers the 1994 Internet server demo on Slackware 2.3 with PPP and mgetty, recreating a classic mid-90s dial-up experience. This write-up covers its history, specifications, pricing, features, and significance.

History

Hayes Microcomputer Products, founded in 1977, dominated the modem market in the 1980s with the Smartmodem series and the AT command set. By the early 1990s, competition from U.S. Robotics, Zoom, and others pushed Hayes to release faster models. The Optima 144 was introduced in 1992 as part of the Optima line, supporting V.32bis (14,400 bps) and V.42bis compression. It was one of the last major Hayes products before the company's 1999 bankruptcy, as broadband began replacing dial-up. The Optima series was praised for reliability and backward compatibility, making it a favorite for BBSs, CompuServe, and early Internet access.

Specifications

The Hayes Optima 144 was a high-end external modem with these key specs:

• Speed: 14,400 bps (V.32bis); fallback speeds: 12,000, 9600, 7200, 4800, 2400, 1200, 300 baud
• Compression: V.42bis (up to 4:1), MNP 5 (up to 2:1)
• Error Correction: V.42 (LAPM), MNP Levels 1–4
• Fax: Group 3 fax at 14,400 bps (Class 1/2)
• Interface: RS-232 serial (DB-25 or DB-9 with adapter)
• Connection: Direct RJ11 to phone line
• Power: External 9VAC power adapter (center positive, 5.5mm x 2.5mm barrel)
• Features: Hayes AT command set, speaker for monitoring, LED indicators (HS, AA, CD, OH, RD, SD, TR, MR), auto-answer, auto-dial, voice mode (some variants)
• Size: Compact desktop unit (approx. 9" x 5" x 1.5")
• Price: $349–$499 (1992–1993 retail; equivalent to $800–$1,100 in 2026 dollars)

It was backward-compatible with older Hayes modems and standards (Bell 103/212A, V.22, V.22bis, V.32).

Features

The Optima 144 offered advanced features for its time:

• High-speed 14,400 bps with V.32bis modulation
• V.42bis compression for effective throughput up to 57,600 bps
• V.42 error correction for reliable connections
• Group 3 fax support (Class 1/2) for sending/receiving faxes
• Hayes AT command set for software control
• Built-in speaker to hear handshakes and carrier
• LED status indicators for high-speed, auto-answer, carrier detect, off-hook, etc.
• Auto-answer and auto-dial capabilities
• Non-volatile memory for storing settings and phone numbers
• Voice mode (some variants) for voice/data switching

It was highly regarded for stability and compatibility, making it a favorite for BBS sysops and early Internet users.

MicroBasement Use

In the MicroBasement, the Hayes Optima 144 serves as the primary modem for the 1994 Internet server demo on Slackware 2.3 (kernel 1.2.8). Configured for 9600 baud (for reliability over PBX lines), it runs with mgetty for auto-answer and PPP for IP connectivity. The setup recreates a mid-90s dial-up gateway, allowing Windows 3.1 clients (via Trumpet Winsock and Mosaic) to connect and browse local pages or early web sites. Its 14,400 capability is reserved for direct tests, while 9600 ensures stable demo performance.

Legacy

The Hayes Optima 144 was one of the last great Hayes modems before the company's decline and the rise of broadband. It represented the peak of dial-up technology in the early 1990s, with fast speeds, robust error correction, and fax support. Its AT command compatibility made it a standard for software and BBSs. In the MicroBasement, it powers authentic 1994 Internet demos, connecting vintage hardware to the digital past.
